Titan Hydraulic Torque Wrenches – T-Square Drive

  • Calibrated and ready for use
  • Powerful
  • Compact
  • Accurate
  • Durable
  • Faster
  • Light-weight
  • Efficient
  • Patented Zero Deflection Housing - for Exceptional Strength, resulting in longer tool life and less repair cost.
  • TITAN Tru-Swivel™ - advanced patented, multi-axis design provides a low profile combined with ease of motion.
  • Designed from finite element - ensures quality - lower total cost of ownership.
  • Ratcheting assurance mechanism for hands free safety and unmatched repeatability.
  • Patented piston dampening system - eliminates tool breakdown normally incurred from over stroke and shock damage resulting in longer tool life and lower repair costs.
  • Finely crafted - of the highest quality aircraft grade materials for unrivaled strength and long life.
  • Guaranteed quality - Titan backs its products with the strongest warranty in the business.
  • Unique drive pawl design -for unrivaled durability accuracy and efficiency.

TITAN T-SERIES - Titan Technologies is the fastest growing company in our industry. We provide a better engineered tool at competitive prices. Our tools are designed for longer life so your total cost of ownership is less with Titan. The quality of the products, our service and our people are the reason for this unprecedented growth. For more information on Titan Products visit www.titanti.com



TITAN MODEL NUMBER T1 T3 T5 T8 T10 T25 T50
Square Drive Size (In) 3/4 1 1-1/2 1-1/2 1-1/2 2-1/2 2-1/2
Optional Square Drive Sizes (In) 1/2 & 1 3/4 & 1 1/2 1 & 2 1/2 1 & 2 1/2 1 & 2 1/2 1 1/2 & 3 1/2 3 1/2
Range Optional Hex Drive Sizes (In) 3/8 to 1 5/8 to 1 1/4 1 to 1 1/2 1 1/8 to 1 3/4 1 1/4 to 2 1 5/8 to 2 1/4 1 5/8 to 2 3/4
(mm) 9 to 26 16 to 32 26 to 38 28 to 45 32 to 51 41 to 57 41 to 70
Torque Range (Ft-Lb) 197 to 1359 468 to 3124 816 to 5605 1168 to 8062 1162 to 11067 3726 to 24749 8274 to 54176
(N-M) 268 to 1842 634 to 4235 1106 to 7600 1583 to 10931 1575 to 15004 3726 to 33555 11220 to 73463
Weight; Includes Reaction Arm (Lb) 5.0 10.0 17.0 25.0 30.0 70.0 115.0
(Kg) 2.27 4.54 7.71 11.34 13.61 31.75 52.15

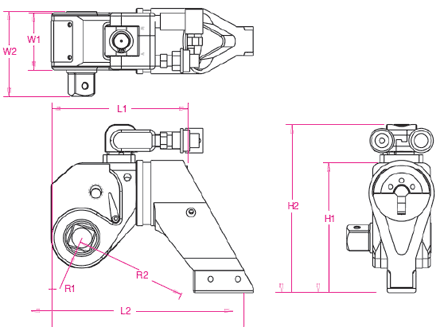

DIMENSIONS
L1 - Body Length (In) 4.81 6.29 7.10 7.70 8.80 11.80 14.75
(mm) 122.2 159.8 180.3 195.6 223.5 299.7 374.7
L2 - Overall Length; Includes Arm (In) 6.95 9.59 11.22 12.57 13.89 18.52 21.50
(mm) 176.5 243.6 285.0 19.3 352.8 470.4 546.1
H1 - Tool Height (In) 3.63 4.93 5.75 6.50 7.84 9.60 15.00
(mm) 92.2 125.2 146.1 165.1 199.1 243.8 381.00
H2 - Overall Height; Includes Swivel (In) 4.95 6.75 7.71 8.49 9.11 11.55 16.80
(mm) 125.7 171.5 195.8 215.6 231.4 293.4 426.7
W1 - Tool Width (In) 1.98 2.63 3.15 3.57 3.95 5.25 7.00
(mm) 50.3 66.8 80.0 90.7 100.3 133.4 177.8
W2 - Tool Width; Includes Sq. Dr. (In) 2.83 3.89 4.65 5.09 5.61 7.48 9.25
(mm) 71.9 98.8 118.1 129.3 142.5 190.0 235.0
R1 - Tool Radius around the Bolt (In) 0.98 1.13 1.56 1.76 1.95 2.60 3.00
(mm) 24.9 28.7 39.6 44.7 49.5 66.0 76.2
R2 - Reaction Reach (In) 3.85 5.33 6.15 6.96 7.69 11.03 12.50
(mm) 97.8 135.4 156.2 176.8 195.3 287.0 317.5
